TD2u – Tableau Forensic Duplicator

The Tableau Forensic Duplicator was built to excel in both field and lab environments. It is a full-featured, fully-forensic duplicator that offers the ideal combination of easy operation, reliability, and ultra-fast forensic imaging of hard disks and solid-state-drives.

Winner of the Forensic 4:cast “2016 Computer Forensic Hardware of the Year” award.

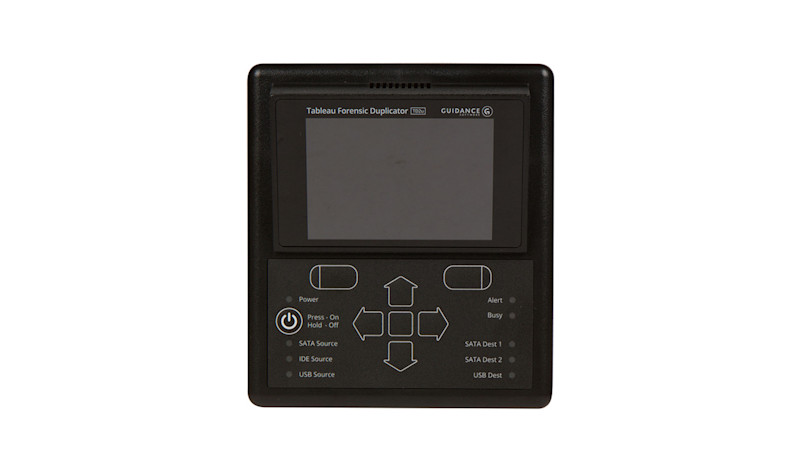

Tableau TD2u top


Image SATA, USB 3.0, and IDE hard disks natively

Image SAS drives with the SAS Expansion Module

Standard operations:

  • Disk-to-Disk (clone) duplication

  • Disk-to-File (image) duplication

  • Format

  • Wipe

  • Hash (MD5 or SHA-1)

  • HPA/DCO detection and removal

  • Blank Disk Check


Imaging speeds in excess of 15 GB/minute (.e01, compressed with MD5 and SHA-1 hashing)

Forensic mode always on (MD5 and SHA-1 hashing)

Capable of making one (1:1), two (1:2), or three (1:3) forensically-sound copies of digital storage devices

Outputs to raw DD, .e01 (compressed), .ex01 (compressed), or .dmg formats

Wiping speeds in excess of 25 GB/minute

Supports whole disk encryption of destination drives

Includes a color LCD for crisp, easy-to-view operational and device status information

Intuitive user interface provides easy operation with minimal training

Nine LEDs provide status on power, source drive detection, destination drive detection, and activity

Packaged in removable foam inserts custom-built to drop into a Pelican 1500 hard case

Free Tableau firmware updates
